4-Wire E&M
E&M 4 Wire Analog to T1 WAN
• T1 Multiplexer: 600 Ohm Analog Voice Frequency Channels with PTT
Choice of 1, 2, 3 or 4 ports are available
on separate models
Part #: VF4W-T1MUX-04
1, 2, 3, and 4 port models next slides
1E&M balanced 4-Wire 600 ohm Voice Frequency interface model
Part #: VF4W-T1MUX-01

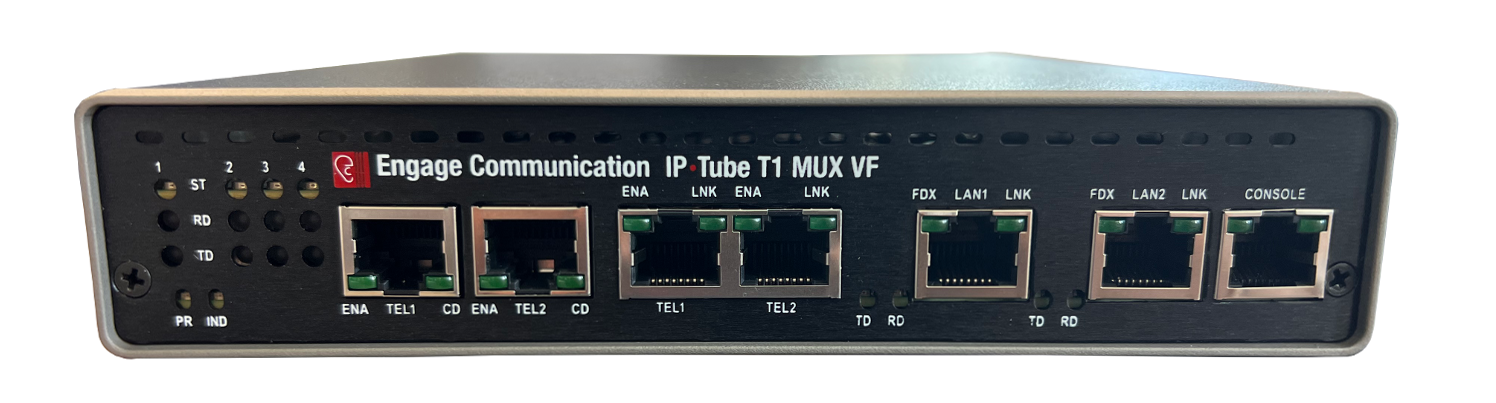

2 E&M balanced 4-Wire 600 ohm Voice Frequency interface model
Part #: VF4W-T1MUX-02

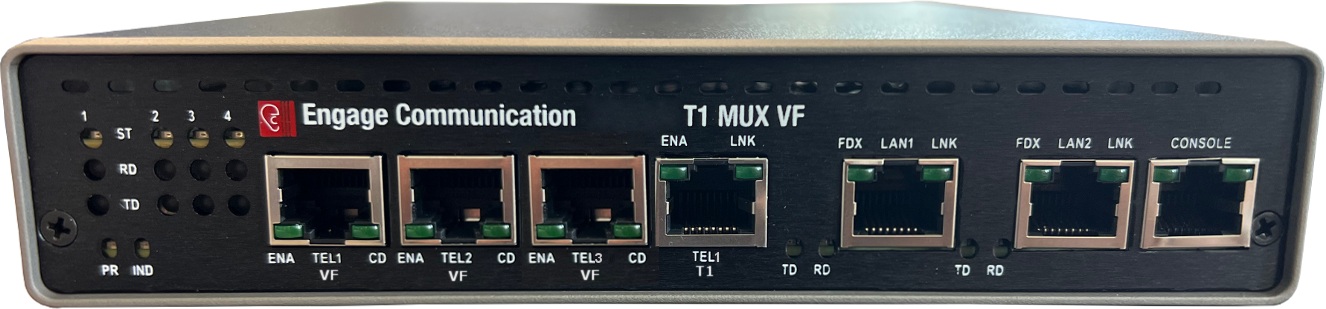

3 E&M balanced 4-Wire 600 ohm Voice Frequency interface model
Part #: VF4W-T1MUX-03
4 E&M balanced 4-Wire 600 ohm Voice Frequency interface model
Part #: VF4W-T1MUX-04
Rear Panel: 12/30 VDC/AC Adapter (option)
Rear Panel: 10/30 VDC Screw Term Adapter (option)
Rear Panel: 12/30 VDC with Negative 48 VDC Screw Term Adapter (option)
T1 MUX VF 4-Wire E&M
T1 Multiplexer: 600 Ohm Analog Voice Frequency Channels with PTT
T1 MUX VF 4-Wire E&M
E&M 4 Wire Analog to T1 WAN
T1 Multiplexer: 600 Ohm Analog Voice Frequency Channels with PTT Choice of 1, 2, 3 or 4 ports are available on separate models.
SIZE
9" (L) x 7.3” (W) x 1.50” (H)
Overview
Voice with E&M Signaling Multiplexed onto T1 Wide Area Networks
The T1 MUX E&M has One, two, three, or four E&M balanced 4-Wire 600 ohm Voice Frequency interfaces with Push to Talk Relay transfer signaling that are multiplexed onto a T1 WAN interface.
Interconnect 600Ω analog, audio and intercom devices such as Radio Wireline, FSK modems, E&M, teleprotection relay controllers, etc. and dry contacts over T1 links.
The T1 MUX E&M employs high resolution Analog to Digital circuitry that maintains the quality of the original audio signal. The PCM CODEC converts 600 Ohm Analog Voice Band into Pulse Code Modulated m-Law G.711.

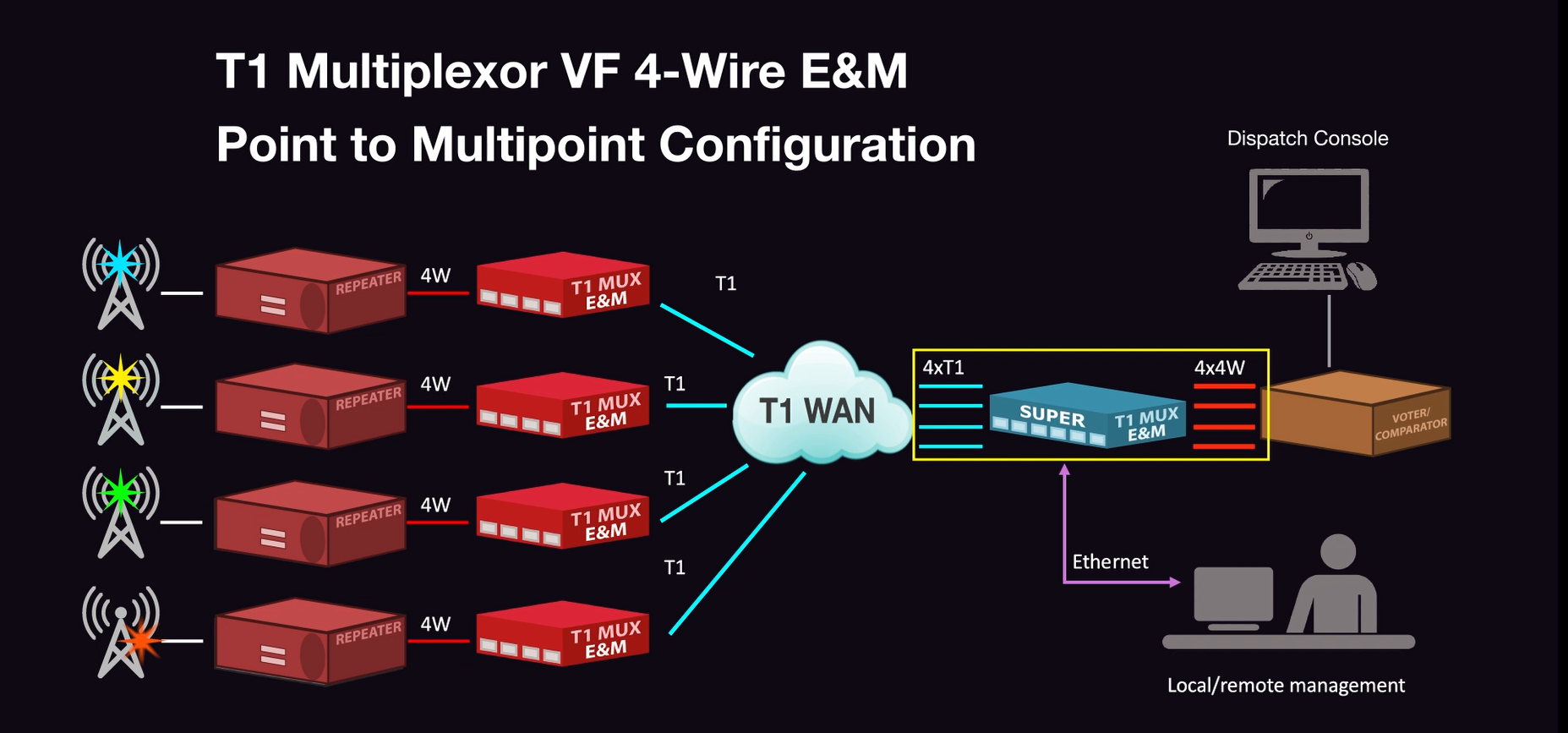

Public Safety Radio Tower Wireline Audio over T1 WANs
A primary application for the T1 MUX E&M is the conversion of Voice Grade E&M circuit interfaces with Push to Talk, that connect Public Safety Radio Base Stations to concentrator hubs.
4-Wire leased line analog networks interconnect VoiceBand Communications for Utilities Municipalities and Public Safety Agencies.
Applications
Leased Line Discontinuation
Many telecom providers are discontinuing their leased lines, such as Verizon and AT&T, and now offering T1 services as an alternative. When T1 lines are available, the T1 MUX VF can seamlessly provide a solution.
Keep Your Critical Communication Running
4-Wire Analog over a T1 WAN
Engage’s T1 MUX-VF, a T1 Multiplexer with a 600 ohm Analog 4-Wire Voice Frequency Interface Module, is a solid solution when the Telco Service provides a T1 Leased Circuit that interconnects the Dispatch Center, Voters and the Base Station Repeaters.
Future proof transition to a P25 digital radio solutions
T1 MUX VF | P25 IP over a T1 WAN
The T1 MUX VF can come equipped with routing capabilities ensuring that when the time comes, the network is ready for IP integration. This forward-thinking feature enables seamless integration between old and new technologies.
Specifications
E&M Interface(s)
- 1, 2, 3 or 4: E&M 4-Wire Full Duplex Voice;
- 600 Ohm Balanced
- Frequency 200 to 3400 Hertz
- CoDec: G711; uLaw
- Signalization E&M Type I/II/III/IV/V
Dry Contact
- 1 to 4 Normally Open1 to 4 Normally Open
- Optically Coupled
- PTT Relay Support
Terminal Interface
- RJ45 RS232 DTE: Console Port for Management
LAN Network Interface
- LAN1 10/100 Base T
LAN Network Protocols Supported
- DIP, TCP, UDP, ICMP, Telnet, DHCP, DDNS, SSH
- SNMP V3 Public and Private MIB with configured traps
Management
- Secure Socket Shell - SSH V2 - Session Encryption
- Centralized Authentication, Authorization and Accounting- TACACS+, RADIUS, Two Factor Authentication
- Syslog with NTP Time Stamping
- Console Port for Out of Band Management
Dimensions
- Dimensions: 9" (L) x 7.3” (W) x 1.50” (H)
Regulatory
- CE
- Safety -IEC60950
- EMC - CFR 47 Part 15 Sub Part B:2002,
- EN55022: 1994 + A1 & A2, EN55024, ICES-003 1997, CISPR 22 Level A
Environmental
- (-10°C - 60°C) operating temperature
- Up to 90% operating humidity (non-condensing)
Rear Panel/Power
- 12-30 VDC, 1.0A.
- Screw Locking Connector
- Universal Adapter 100/240 VAC 50/60 Hz
- Optional -48V 0.25 Amp
- Hot Standby
Ordering Information

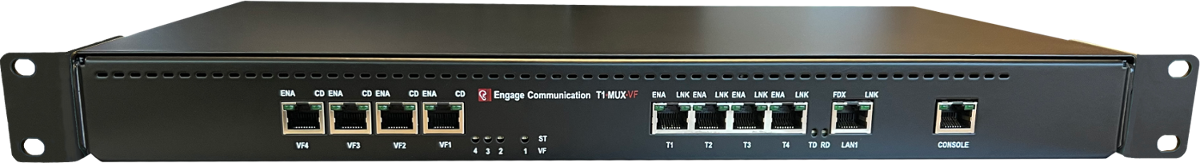

Chassis Slot Card: T1 MUX VF 4-Wire E&M

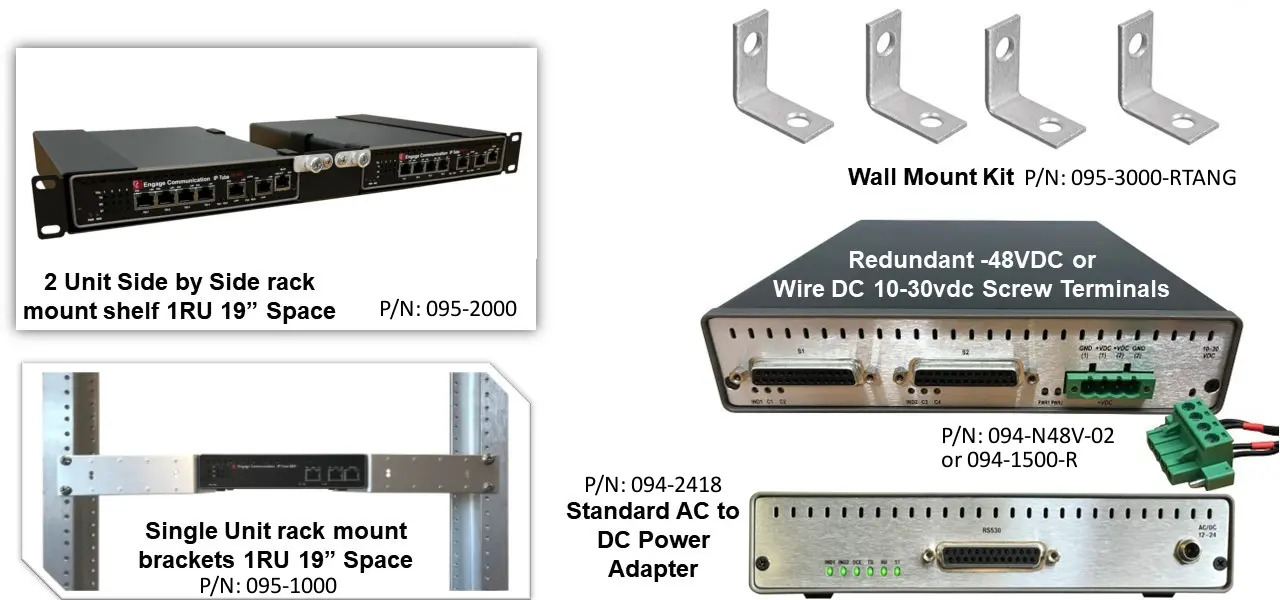

Rack Mount & Power Supply Options:
Part No.
Description
VF4W-T1MUX-0x*
T1 WAN VF 4 Voice 4 Signaling, *Note: x = Specified # of 4-Wire E&M PTT Ports (1 to 4)
CH-VF4W-T1MUX-04
Chassis Slot Card: T1 WAN VF, w/ 4 E&M PTT Ports
Power Supply Options
Power Supply Options
094-2418
90-220 VAC Universal International/Domestic Adapter
094-2418-R
DUAL REDUNDANT, 90-220 VAC Adapter
094-N48V
Internal Power Module, -48 VDC Screw Terminals
094-N48V-02
DUAL REDUNDANT, -48 VDC Screw Terminals
094-1500
WIREDC Option, +24 VDC Screw Terminals
094-WIREDC-R
DUAL REDUNDANT, +24VDC
Rack Mount Options
Rack Mount Option
095-1000
Rack Mount Kit - for single 7" products (Fits both 19" and 23" racks)
095-2000
2 unit 19" x 1RU Rack Mount Kit for 7" products
095-3000-RTANG
Right Angle Wall Mount Bracket Kit
