BlackTube RS232 SER
Black•Tube RS232 CEP

Converts RS232 serial data connections into AES encrypted IP packets

• Encrypted RS232 Over IP
• Dual LAN Interfaces
• Assured Delivery Protocol
• CEP Management

Image is not available
SIZE
9" (L) x 7.3” (W) x 1.5” (H)
Rack Mount and Power Options
Image is not available

Rack Mount and Power Supply Options

IP Tube CEP RS530 Front
Image is not available

Slot-Card Version

Serial 4 Port Back Panel VDC
Image is not available

Rear Panel: 4-Port with 12/30 VDC Adapter Power (option)

Serial 2 Port Back Panel VDC
Image is not available

Rear Panel: 2-Port with12/30 VDC Adapter Power (option)

Serial 2 Port Back Panel -48
Image is not available

Rear Panel: 2-Port with Negative 48VDC Adapter Power (option)

previous arrow
previous arrow
next arrow
next arrow

Black•Tube RS232 CEP

Converts RS232 serial data connections into AES encrypted IP packets

Black•Tube RS232 CEP

Converts RS232 serial data connections into AES encrypted IP packets

- Encrypted RS232 Over IP -

- Dual LAN Interfaces -

- Assured Delivery Protocol -

- CEP Management -

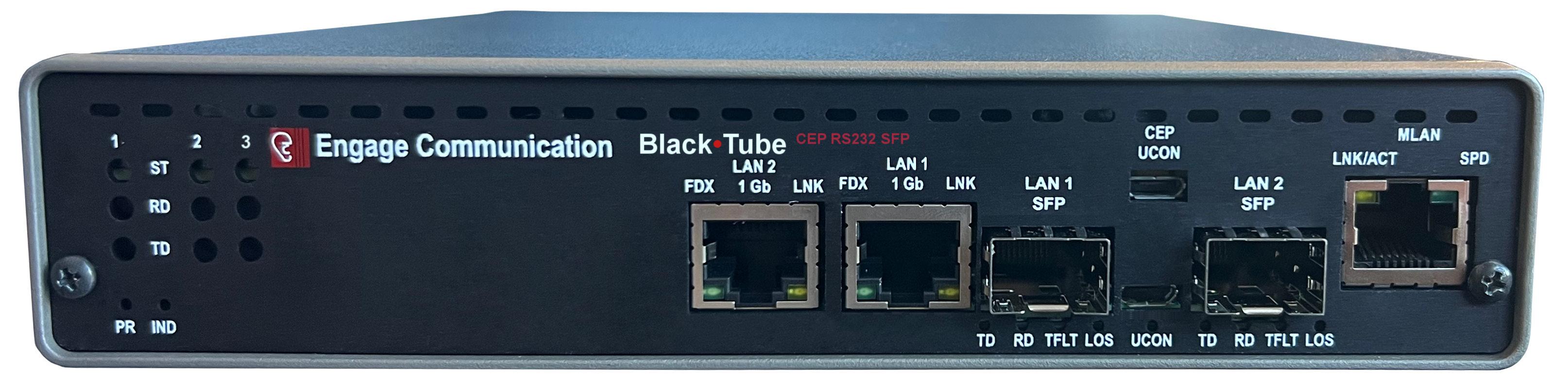

Product Image

SIZE

9" (L) x 7.3” (W) x 1.50” (H)

Overview

The BlackTube CEP RS232 converts RS232 serial data connections into AES encrypted IP packets, extending the serial data over very cost effective Ethernet or MPLS based LAN/WAN/MAN wired and wireless networks. Synchronous, Asynchronous, Isochronous or HDLC serial data is encrypted then encapsulated into IP packets. This facilitates the interconnection of Serial Data over IP between Serial Bulk Encryptors (KIV7/OMNI), Data Terminals, Data Acquisition Systems, WAN Routers and Bridgesand SCADA RTUs.

Layer 1 with Isochronous Support

In Layer 1 operating mode every bit is encapsulated into an IP packet. The size and frequency of the IP packets can be set with data bit rates from 75 bits to 256 kilobits per second. Isochronous serial protocols, such as Conitel, are transported synchronously to maintain message alignment. A configured number of incoming packets are buffered in order to compensate for the packet delivery jitter introduced by the network. The size of the Tube bit buffer is configurable to accommodate the peak amount of jitter.

Asynchronous Over IP

Asynchronous characters from the RS232 interface with 5 to 8 data bits, baud rates from 1.2 to 38.4 kilobits, 1 or 2 stop bits that are with or without parity are efficiently encapsulated into IP packets. The encapsulation supports block mode transfers to minimize the bandwidth required. Additionally the latency is controlled by setting the Tube Bytes per packet.

HDLC Over IP

In Layer 2 operating mode HDLC Data frames, such as those used by Wide Area Networking protocols PPP and Frame Relay or proprietary Data Links, are transported within IP packets as HDLC over IP. The Serial to Packet conversion only occurs when HDLC frames are active.

SCADA Protocol Transparency

The BlackTube CEP transports Bit or Byte orientated SCADA protocols transparently because of its unique TDM circuit emulation capability.

Assured Delivery Protocol

In order to assure high quality communications over links with
intermittent or noisy performance, such as Wireless.
• Packet out of sequence detection and re-sequencing
• Duplicate skipping
• Lost packet retransmissions with configured delay

Protector Option -PRO

The protector option utilizes the second LAN interface as a redundant path for the interconnection of the IP encapsulated RS232 data. The extension of the RS232 has a fault tolerant link that is configured to always on, or with
switch over criteria.

Applications

Black•Tube CEP RS232 Utility Applications

NERC -CIP mandates control center redundancy. RTUs must be accessible from, and be able to connect to, multiple control centers. Black•Tube CEP continuously monitors connectivity to the active control center and automatically switches to the active backup control center (1 to 4 supported).

- Meets NERC mandates for control center redundancy
- Preserves investment in RTU and Central site SCADA
- Facilitates control center redundancy with IP flexibility
- Supports up to four redundant control centers
⁻ Redundant and diverse connectivity

Black•Tube CEP Multidrop

In order to minimize the number of analog telephone circuits required to connect Data Center Front End SCADA controllers to Substation Remote Terminal Units Multi-Drop communication protocol was implemented. The CEP Multi-Drop feature allows a single RS-232 SCADA host connection to communicate with up to 8 remote terminals over a packet based network

The Black•Tube CEP transparently supports Multi-Drop by simultaneously transmitting IP packetized Front End SCADA messages to up to eight remote Black•Tube CEPs. The Black•Tube CEP connected to the addressed RTU detects a control signal and sends the SCADA response back to the Serial interface connected to the Front End polling port.

WAN Data Over IP

BlackTube SER RS232 provides a transparent bandwidth regulated IP Tunnel for securely interconnecting remote Networks. WAN Protocols, such as PPP and Frame Relay, that utilize HDLC framing are encapsulated with HDLC Over IP. Broadband Service providers are able to transport Enterprise Wide Area Network connections with inband management of the Committed Information Rates. The BlackTube SER RS232's IP Tunnel can also be utilized as a secondary path for fault tolerant mission critical applications.

Black•Tube CEP Management

Management Module

BlackTube CEP isolates management and data plane functionality with the use of two separate processor modules. Management processor access is limited to encrypted sessions via SSH, or SNMPv3, that employ AES 256 bit keys and sophisticated NIST passwords. These sessions may be established after authentication via TACACS+ or Radius.

The independent Linux based management plane of the BlackTube CEP ensures Critical Infrastructure Data is isolated from management network access. The Management Module uses internal serial ports to connect to the Data Plane processor.
Administration and User Logs are available with Syslog.

NERC CIP Compliance

The BlackTube CEP installations achieve NERC CIP compliance with a combination of internal and external functions.

Internally the Management Module software has the sophistication to implement comprehensive policies and privileges for administrator and user accounts. Administrator policy includes removal, disabling or renaming.

Interoperability with external functions such as Syslog, Network Timing Protocol, TACACS+ and Radius with its support for RSA SecureID delivers trusted compliance.

Electronic Security Perimeter

The Black•Tube CEP in combination with industry standard services meets the Electronic Security Perimeter's NERC CIP-005 specifications. In addition Control Plane isolation from the Data plane provides a higher level of security for the Cyber Assets.

CIP-005 Requirement & IP•Tube CEP Solutions

R2.1 - Deny Access by Default

Solution: Accounts must be created to allow access

R2.2 - Enable only needed ports

Solution: Each Port may be enabled or disabled

R2.4 - Strong Technical Controls

Solution: RSA's SecureID two-factor Authentication

R3.2 - Unauthorized Access

Solution: Alert messages via Syslog or TACACS+

R5.3 - Access Logging

Solution: Syslog of Access and Command interactions

CIP-005 Requirement

IPTube CEP Solution

R2.1 - Deny Access by Default

Accounts must be created to allow access

R2.2 - Enable only needed ports

Each Port may be enabled or disabled

R2.4 - Strong Technical Controls

RSA's SecureID two-factor Authentication

R3.2 - Unauthorized Access

Alert messages via Syslog or TACACS+

R5.3 - Access Logging

Syslog of Access and Command interactions

System Security Management

Access control is Authenticated, Authorized and Accounted for with TACACS+.

Security Patches managed proactively.

CIP-007 Requirement

IPTube CEP Solution

R2.1-3 - Ports and Services

Unused Serial Ports and Services are disabled

R3 - Security Patch Management

Kernel and application upgrade alerts

R5.3 - Secure Passwords

Require minimum length, strength, frequencyRequire minimum length, strength, frequency

R6.4 - Security Status Logs

Syslog and AAA via TACACS+

CIP-007 Requirement & IP•Tube CEP Solutions

R2.1-3 - Ports and Services

Solution: Unused Serial Ports and Services are disabled

R3 - Security Patch Management

Solution: Kernel and application upgrade alerts

R5.3 - Secure Passwords

Solution: Require minimum length, strength, frequencyRequire minimum length, strength, frequency

R6.4 - Security Status Logs

Solution: Syslog and AAA via TACACS+

NERC CIP 05 IP-Tube CEP RS232 Compliant Operation

Specifications

LAN Network Interface
  • LAN1/LAN2: Two Data Plane 10/100 Base T
  • MLAN: Control Plane 10/100 Base T
LAN Network Protocols Supported
  • IP, TCP, UDP, ICMP, Telnet, DHCP, DDNS, SSH
  • Network Time Protocol - NTP
RS232 Interfaces
  • 1-3 DCE/DTE RS232: 2 DB25F Connectors; 1 DB60F connector: Requires an adaptor cable- DB60M to 1 DB25M
RS232 Interface Clocking
  • Synchronous: 75 bits to 256 kilobits per seconds

  • Asynchronous, Isochronous : 75 / 300 / 600 bits per second 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 Kilobits per second

RS232 Interface Control Signal Extension
  • Comprehensive DTR / DSR / RTS / CTS / DCD State Processing and Extension
  • DTR & RTS Enveloped Transmission
  • CD Reception
RS232 Over IP Protocol
  • Serial Over IP
  • Circuit Extension Services Over IP
  • HDLC Over IP
  • Multi-Drop: 2 to 8
Protocols Supported
  • HDLC, SDLC, PPP, Frame Relay
  • Conitel, Modbus, DNP, Proprietary, Bit or Byte, AutoBaud
SCADA Encryption Algorithm
  • AES 256-bit
  • Fully Automatic key management
Management
  • Secure Socket Shell - SSH V2 - Session Encryption

  • Centralized Authentication, Authorization and Accounting

    • TACACS+, RADIUS, Two Factor Authentication
  • Syslog with NTP Time Stamping

  • Console Port for Out of Band Management

  • SNMP V3 Public and Private MIB support with configured traps

Quality of Service Support
  • IP Type of Service (TOS) CLI configured
  • IANA Registered UDP Port 3175
  • 802.1p/q mac level prioritization
Regulatory
  • CE
  • Safety -IEC60950
  • EMC - CFR 47 Part 15 Sub Part B:2002, EN55022: 1994 + A1 & A2, EN55024, ICES-003 1997, CISPR 22 Level A
Environmental
  • 0° to 132° F (-10° to 50°C) operating temperature
  • Up to 90% operating humidity (non-condensing)
  • Optional Extended Temperature Range (-40°C to 70°C)
Dimensions
  • Dimensions: 9" (L) x 7.3” (W) x 1.50” (H)
Power
  • 12-30 VDC, 1.0A.
  • Screw Locking Connector
  • Universal Adapter 100/240 VAC 50/60 Hz
  • Optional -48V 0.25 Amp
  • Hot Standby

Ordering Information

Chassis Slot Card: Black•Tube CEP RS232

Rack Mount & Power Supply Options:

BlackGate RS232 Rear
BlackGate RS232 Rear

Part No.

Description

CEP-007-2232-0x*

Black•Tube CEP RS232, *Note: x = Number of specified RS232 ports enabled (1 to 3)

CH-CEP-007-2232-0x*

Chassis Slot Card: Black•Tube CEP RS232, *Note: x = Number of specified RS232 ports enabled (1 to 3)

Optional Features

Optional Features

Y

Serial Redundancy, Complete hardware redundancy

EXT

Extended Temperature, -40C to 70C

PRO

Protector Option, Fault Tolerant Network Interconnect. The protector option utilizes the second LAN interface as a redundant path for the interconnection of the IP encapsulated data. The extension of the IP-Tube has a fault tolerant link that is configured to always on, or with switch over criteria.  Learn more.

Power Supply Options

Power Supply Options

094-2418

90-220 VAC Universal International/Domestic Adapter

094-2418-R

DUAL REDUNDANT, 90-220 VAC Adapter

094-N48V

Internal Power Module, -48 VDC Screw Terminals

094-N48V-02

DUAL REDUNDANT, -48 VDC Screw Terminals

094-1500

WIREDC Option, +24 VDC Screw Terminals

094-WIREDC-R

DUAL REDUNDANT, +24VDC

Rack Mount Options

Rack Mount Option

095-1000

Rack Mount Kit - for single 7" products (Fits both 19" and 23" racks)

095-2000

2 unit 19" x 1RU Rack Mount Kit for 7" products

094-WIREDC-R

DUAL REDUNDANT, +24VDC

095-3000-RTANG

Right Angle Wall Mount Bracket Kit
