T1 Drop and Insert Multiplexor, with Ethernet Hub DC Powered T1 Drop and Insert Mux

Solution Overview

IP·Express MLT-DI-H is a Wide Area Network router that routes the Internet Protocol through a T1 Interface that is Multiplexed with a built-in Drop and Insert Mux. An integrated Four Port 10Baset Ethernet Hub provides a complete branch office T1 Mux solution.

IP·ExpressMLT DI-Hs are very reliable, high performance and cost effective solutions for simultaneously interconnecting Remote LANs and T1 based Telecommunication Equipment over a single T1 link. A WAN Router, T1 Drop and Insert Interface and a long haul T1 DSU/CSU are integrated to create a complete T1 Data and Voice Multiplexor. The Integrated 4 port Ethernet Hub combined with the DC powering option results in a very complete carrirer class solution.

Network Security is provided with Full On Source, Destination Address; Port and Flag IP Packet filtering. Interconnectivity is able to be selectively controlled at the network, device and application layers.

Network Address Translation is a standard feature of the IP·Express·MLT-DI-H. The NAT function performs IP Port Address Translation on a single global IP address. The NAT/PAT translation provides a type of firewall by only allowing communication to those connections that are established from the internal side of the network.

Management of the IP·Express·MLT-DI-H is accomplished with a Command Line Interface that is accessed through a Console or Telnet connection. Templates of the most common configuration provide for an Edit and Paste configuration. EngageView is a configuration application for AppleOS. SNMP MIB I and II support is a standard feature.

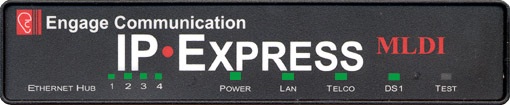

IP•Express MLT-DI-H

IP T1 WAN Router with T1 Drop and Insert Mux and Four Port 10 BaseT Hub

IP·Express·MLT-DI-H is a Wide Area Network router that routes the Internet Protocol through an T1 Interface that is Multiplexed with a built-in Drop and Insert Mux. Wide Area Networking Point to Point and Frame Relay Protocols, with 24/7 proven interoperability, are fully supported on the T1 channels allocated to the internal WAN Router. An integrated Four Port 10Baset Ethernet Hub provides a complete branch office T1 Mux solution.

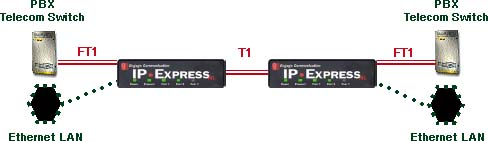

PExpressMLT·DI-Hs are used to connect Branch Office PBXs and Phone switches to an organizations headquarters' Phone System, which has access to the PSTN, to save money on Local Access Phone charges and interoffice calls. The remote LAN interconnection to the HQ LAN is utilized for centralized database access, shared file servers, print servers, etc.

IPExpressMLT-DI-H PDF Brochure | IPExpressMLT-DI-H Manual in PDF Format

Teleconferencing Equipment Interconnect
IPExpressMLT·DI-Hs provide T1 based Teleconferencing Applications with a very cost effective solution to share a T1 connection with the LAN.

Remote Management of Telecommunication Switches
IPExpressMLT·DI-Hs enable Telecommunication Service Providers to remotely manage their Telecommunication Switches over their T1 connection. Allocation of T1 bandwidth to the LAN interface provides for an always on IP based network connection to the Ethernet Management interfaces of the Telecommunication Switch.

CLEC CPE for Internet Access and PBX Connection to the PSTN
IPExpressMLT·DI-Hs are the ideal Customer Premise Equipment for Competitive Local Exchange Carriers that are provisioning Internet Access and PBX Connection to the Public Switch Telephone Network. The IPExpressMLT·DI-H connects the customers LAN and PBX to the CLECs T1 access line in a single piece of equipment.

Technical Specifications

LAN Network Interface:
· Four 10BaseT Ethernet

LAN Network Protocols Supported:
· IP, TCP, UDP, RIP, ICMP, BOOTP
· AppleTalk (Configuration Only)

WAN Network Interfaces:
· One T1/FracT1 CSU/DSU port

WAN Network Protocols Supported:
· PPP
(RFC 1548, RFC 1332, RFC 1334, PAP)
· Frame Relay
(ANSI ANNEX D, LMI, RFC 1420)

T1/Fractional T1 Specifications:
· Framing - CRC4 or FAS
· Coding - HDB3 or AMI
· Supports DS0 assignments from 1 to 31

Regulatory:
· Safety -IEC60950 Third Edition (1999)
              CB TEST CERTIFICATE
· EMC - EN55022:1994+A1&A2
            EN55024, ICES-003 1997
            CISPR 22 Level A
· Telecom - TBR12, TBR13
· CE

Power:
· 12-36 VDC, 1.0A;
· Optional -48 VDC, 0.25A;
       International Adapters Available

DS1 Drop and Insert Specifications:
· Framing - CRC4 or FAS
· Coding - HDB3 or AMI
· Supports DS0 assignments from 1 to 31

TFTP Upgrade Capable (Flash ROMs):
· IPExpressMLT-DI is operational during upgrade

Management:
· Telnet support with Edit and Paste Templates
· Console Port for Out of Band Management
· SNMP support (MIB I, MIB II)
· Remote configuration, monitoring, & reset

Console Port:
· RJ45 to DB9 Female DCE adapter shipped with product. Enables direct connection to Com1.

Diagnostic:
· Loopback Tests
      Network
      Internal
      Framer
      Payload
· Bert Tests
      2E07,2T11,2T15,QRSS

Dimensions:
· 9" (L) x 7.3" (W) x 1.50" (H)

Back Panel

Console Port Connector · RJ 45 to DB 9 Female Adapter provided

Telco: T1 DSU/CSU Interface for WAN connectivity via PPP or Frame Relay

4 Port 10BaseT Ethernet Hub

DS1: T1 Drop and Insert Interface for T1/DS1 Telecommunication Equipment interconnectivity.

Power: 12-36 VDC
